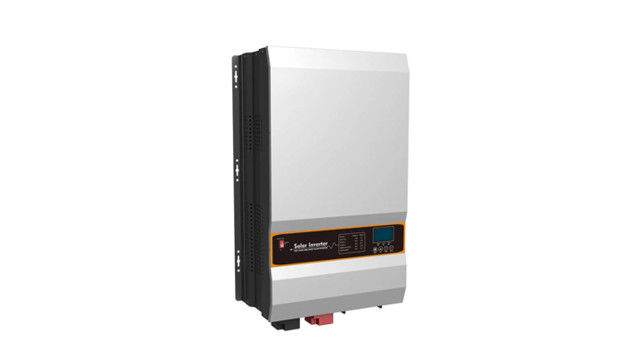

5kva 4000w 48v Inverter 4kw Off Grid Solar Inverter Low Frequency
Product Summary
MITPC3500 PRO Series Low Frequency Off Grid Solar Inverter (4-12KW) MITPC3500 PRO series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger to offer uninterruptible power support. The comprehensive LCD display offers ...
Product Custom Attributes
5kva Off Grid Solar Inverter
,4kw Off Grid Solar Inverter
,5kva 4000w 48v Inverter 4kw
Basic Properties
Trading Properties
Product Description
MITPC3500 PRO Series Low Frequency Off Grid Solar Inverter (4-12KW)
MITPC3500 PRO series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger to offer uninterruptible power support. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.
Features:
· Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.
· Built-in MPPT solar charge controller 80A/100A/200A
· MPPT efficiency max 98%
· Powerful charge rate up to 140Amp
· DC start &Automatic Self-Diagnostic Function
· WIFI / USB monitoring function (wi-fi optional)
· Supporting AGS, BTS port
· Compatible to generator
MITPC3500 PRO Series Low Frequency Off Grid Solar Inverter (4-12KW)
| MODEL | MITPC3500 PRO-** | |||||||
| Nominal Battery System Voltage | 24V | 48V | 24V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||
| Rated power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
| Surge rating | 12000VA | 15000VA | 18000VA | 24000VA | 30000VA | 36000VA | ||
| Capable of starting electric motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||
| Waveform | Pure sine wave / same as input (bypass mode) | |||||||
| Nominal output voltage RMS | 220V / 230V / 240VAC (±10%RMS) | |||||||
| Output frequency | 50Hz / 60Hz ± 0.3Hz | |||||||
| Inverter effciency(peak) | >85% | >88% | ||||||
| Line mode efficiency | >95% | |||||||
| Power factor | 1.0 | |||||||
| Typical transfer time | 20ms(max) | |||||||
| AC INPUT | ||||||||
| Voltage | 230VAC | |||||||
| Selectable voltage range | 90-280 VAC (APL) | |||||||
| Frequency range | 50Hz / 60Hz | |||||||
| BATTERY | ||||||||
| Low battery voltage cutoff | 20-24VDC for 24VDC mode (40-48VDC for 48VDC mode) | |||||||
| Low battery voltage recover | 21-25VDC for 24VDC mode (42-50VDC for 48VDC mode) | |||||||
| High battery voltage cutoff | 30VDC for 24VDC mode (60VDC for 48VDC mode) | |||||||
| High battery voltage recover | 28.5VDC for 24VDC mode (57VDC for 48VDC mode) | |||||||
| Idle consumption-search mode | <30W when power saver on | <80W when power saver on | ||||||
| AC CHARGER | ||||||||
| Output voltage | Depends on battery type | |||||||
| Charger AC input breaker rating | 40A | 40A | 50A | 80A | 80A | 80A | ||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
| Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A |
| BTS | ||||||||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | |||||||
| BYPASS & PROTECTION | ||||||||
| Input voltage waveform | Sine wave (grid or generator) | |||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||
| Overload protection (SMPS Load) | Circuit breaker | |||||||
| Output short circuit protection | Circuit breaker | |||||||
| Bypass breaker rating | 40A | 63A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||
| SOLAR CHARGER | ||||||||
| Maximum PV charge current | 80A | 100A(200A optional) | ||||||
| DC voltage | 24V / 48V Auto work | 48V | ||||||
| Maximim PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000W(10000W for 200A optional) | ||
| MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode,64-145V for 48V mode | 64~145VDC | ||||||
| Maximum PV array open circuit voltage | 145VDC | |||||||
| Maximum effciency | >98% | |||||||
| Standby power consumption | <2W | |||||||
| MECHANICAL SPECIFICATIONS | ||||||||
| Mounting | Wall mount | |||||||
| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | ||||||
| Net weight (solar CHG) (kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||
| Shipping dimensions (W*H*D) | 755*515*455mm | 884*618*443mm | ||||||
| Shipping weight (Solar CHG) (kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||
| OTHER | ||||||||
| Operation temperature range | 0°C to 40°C | |||||||
| Storage temperature | -15°C to 60°C | |||||||
| Audible noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | |||||||
