MITPC35KT is a three pahse power frequency photovoltaic inverter, combine with Dual CPU single chip intelligent control technoloty, microcomputer control and humanized design together, take full account of the needs of end customers. This product provide Three-stage charging function with battery type selection ( optional). And can realize the connection of generator and external battery.
35000W Off Grid Three Phase solar Inverter Pure Sine Wave MITPC35KT
| Model | MITPC35KT |
| RATED POWER | 35000W |
| PV INPUT | |
| Minimum DC Input Power | 384VDC |
| Max Discharge Current | 175A |
| Input Utility Electricity Voltage AC | 380V |
| Intergrated AC Charger Current ( optional) | 10A |
| MPPT voltage range(V) | |
| Maximum input current(A) | |
| AC Output | |
| Output Current | 65A * 3 |
| Rated Voltage | 380VAC ±5% |
| Frequency | 50Hz / 60Hz |
| Phase number | Three Phase |
| Output Wave Form | Pure Sine Wave |
| Current THD | ＜ 3% |
| Switching Time | 20ms ~ 1s |
| General Parameters | |
| Invert efficiency | ≥ 85% |
| Standby Power Consumption | ＜ 20W |
| Noise | ≤ 55dB |
| Peak Overload Capacity | when >120%, 10s protection; when >150, 5ms protection |
| Display | LCD/ LED |
| Operation temperature Range | Air Flow, -10 ℃ ~ 60 ℃ |
| Relative humidity | ≤90% RH , no condensation |
| Environment | No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc. |
| Altitude | < 1000m |
| Size | 600x800x1500mm |
| Weight | 345kgs |
MITPC35KT Off Grid Three Phase Power Frequency Photovoltaic Inverter
Dual CPU single chip intelligent control technoloty, microcomputer control,humanized design.
· Output high quality Pure Sine Wave AC power, with strong Load capacity.
· With perfect protection fuction, greatly improve product reliability.
· Adopt CPU centralized control, and SMT technology.
· Stable operation, low distortion, no noise, no pollution. Strong resistance to load impact, long life.
· LCD/LED Panel Manu display operation status.
· Three-stage charging function with battery type selection ( optional).
· Stroage Battery overvoltage, shortvoltage protection. Can resume working automatically.
· Utility electricity automatic conversion . ( optional )
· High conversion efficiency, high instance power, low load loss.

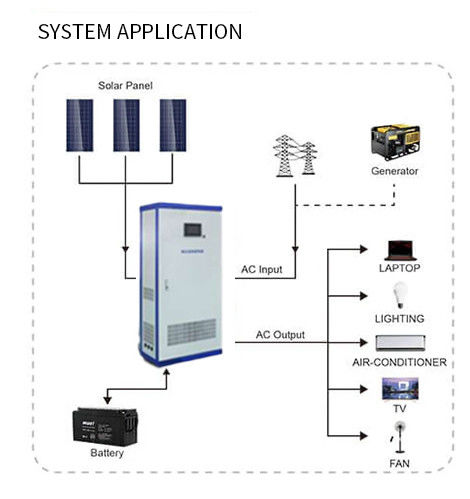

· Can realize the connection of generator and external battery.
