| Place of Origin | China |
| Brand Name | MITSCN |
| Certification | ISO |

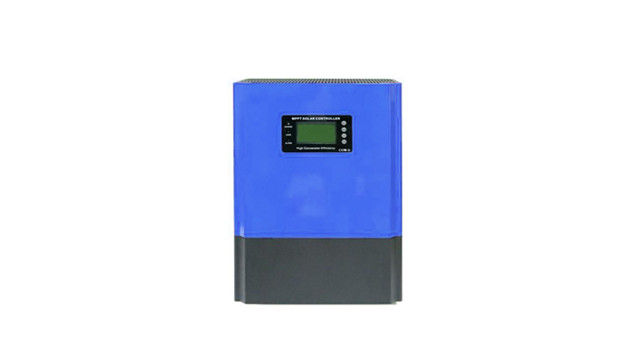

MITSCN CONTROLER 384V 70-80A--MPPT
● MPPT charge mode, conversion efficiency up to 99.5%.
● Charging voltage is adjustable；Three stage charge mode.
● Provide humanized function of human–machine interaction,LCD soft light to show main
parameters.
● RS485 or RS232 ( optional) and LAN communication port,IP and Gate address couldbe
defined by the user.
●Modular design and the lifespan is designed to use for 10 years in theory.
● Products comply with UL, TUV, 3C, CE certification requirements.
● 2 years warranty and 3~10 years extended technical service.
General Parameters
System Type ( Voltage) 384 VDC
Rated Charge Current 70/ 80A
Max. PV Input Voltage 850VDC
Charge Mode MPPT ( Maximum Power Point Tracking ), Efficiency ≥99.5%
Input Characteristics
CG Series Auto Recognize the Battery Voltage Range
288~512VDC
Start the Charging Voltage Point
Higher than current battery voltage 20V
Input Low Voltage Protection Point
Higher than current battery voltage 10V
Rated PV Input Power
29120W (70A),
33280W (80A)
Charge Characteristics
Selectable Battery Type :Sealed Lead-Acid, Vented, Gel, Ni-Cd.
Charge Method:3 Stages: Constant Current (Fast charge), Constant Voltage, Floating Charge
Temperature Compensation:14.2V-(the highest temp.-25℃)*0.3
Other Characteristics
Setting Control
MPPT controller or PC software
Load Control Way
Dual time control mode, PV voltage control mode, PV&time control mode, ON/Off control mode
Load Voltage Protection
Lower than low voltage protection point can be set; Cancel the low voltage protection can be set
LCD Display
System Type, PV Voltage, Charge Voltage, Charge Current, Charge Power, Temperature, etc.
Software Control through PC ( Communication port)
RS485, RS232 , LAN
Protection
Input low voltage, over voltage, PV input reverse connection, battery reverse cooection, over
discharge, short-circuit, Over-temp.
Cooling Way: Intelligent fan cooling
Operating Temperature: -20℃ ~ +40℃
Humidity: 0~90%RH ( no condensation )
Safety: CE, RoHS, UL, 3C
Product Size: 500x371x187mm
Net Weight: 15 kgs
Mechanical Protection: IP21
