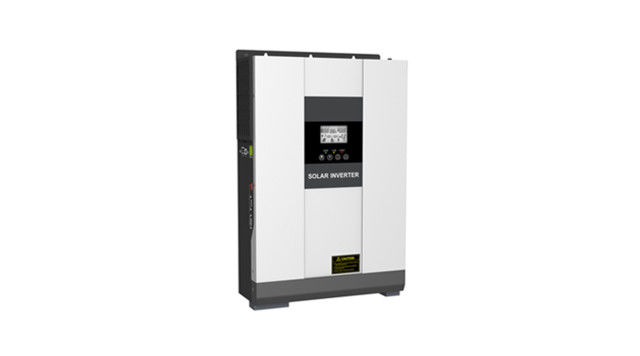

MITPC30k-60k Series(AC220/240V:30KW-60KW)
Features
• Pure sine wave output
• Friendly user interface;MFD (multi-function display) • Soft start function
• Output isolation transformer
• State grid automatic conversion (option)
• Can connect generator and external battery
• Panel menu LED/LCD display working status
• Power off protection
• Energy conservation
• Real time supervision
• High and new technology
MODEL | PC30K | PC40K | PC50K | PC60K | |
Inverter Output | Rated power | 30000k | 40000k | 50000k | 60000k |
Peak power | 45000k | 60000k | 75000k | 90000k | |
Wave form | Pure sine wave | ||||
Output current | 45A*3 | 60A*3 | 75A*3 | 90A*3 | |
Output voltage Range | 380Vac ± 5% | ||||
Output frequency | 50 / 60Hz (±3 ) | ||||
Inverter efficiency (peak) | >85% | ||||
Input | Battery Voltage | 240V | 360V | 360V | 360V |
Maximum Discharge Current | 163A | 106A | 132.8A | 159.4A | |
Rated Input Voltage | 380Vac ± 20% | ||||
Input frequency | 50Hz / 60Hz (auto sensing) | ||||
Protection | Battery Under voltage Protection | Yes | |||
Grid Overvoltage Protection | Yes | ||||
Grid Undervoltage Protection | Yes | ||||
Over Load Protection | Yes | ||||
Over Temperature Protection | Yes | ||||
Short Circuit Protection | Yes | ||||
General Data | Ambient Temperature Range | -10℃ ~ +60℃ | |||
Relative Humidity Range | 0 ~ 90% (no condensation) | ||||
Degree of Protection | IP20 | ||||
Noise | < 55dB | ||||
Cooling | Fan | ||||
Display | LCD display / Touch Screen (Optional) | ||||
Net Weight | 298kg | 298kg | 298kg | 298kg | |
Dimension | 1700*550*750mm | 1700*550*750mm | 1700*550*750mm | 1700*550*750mm |
