Monocrystalline PV Module
>
|
| Place of Origin | China |
| Brand Name | MITSCN |
| Certification | ISO |

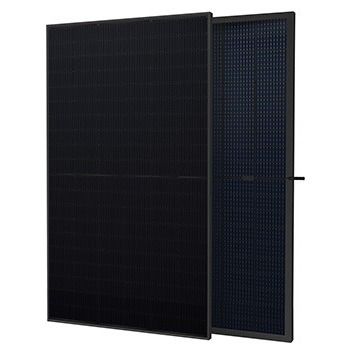

RS3-435_460MX(166-144 black mono-facial modules)
P-Type /Positive power tolerance of 0~+3%/Max module efficiency 21.16%
Suitable for ground power plants and distributed projects
Advanced module technology delivers superior module efficiency
·Gallium-doped Wafer·Non destructive cutting ·MBB half-cut
Excellent power generation performance
·Excellent IAM and Weak light response ·Low temperature ratings ·0.55% linear Power decline
High module quality ensures long-term reliability
·Strict selected material ·Advanced technology ·Leading standard
Ultra-hydrophilic self-cleaning coating techniques
| Electrical Characteristics STC | RS3-435MX-E3 | RS3-440MX-E3 | RS3-445MX-E3 | RS3-450MX-E3 | RS3-455MX-E3 | RS4-460MX-E3 |
| Maximum Power (Pmax) | 435W | 440W | 445W | 450W | 455W | 460W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| ciency |
20.01% | 20.24% | 20.47% | 20.70% | 20.93% | 21.16% |
| Maximum Power Current (Imp) | 10.53A | 10.60A | 10.66A | 10.74A | 10.81A | 10.88A |
| Maximum Power Voltage (Vmp) | 41.30V | 41.50V | 41.73V | 41.90V | 42.10V | 42.28V |
| Short Circuit Current (Isc) | 11.32A | 11.40A | 11.48A | 11.55A | 11.65A | 11.74A |
| Open Circuit Voltage (Voc) | 49.10V | 49.30V | 49.50V | 49.70V | 49.90V | 50.10V |
| Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C) | ||||||
| Electrical Characteristics NOCT | RS3-435MX-E3 | RS3-440MX-E3 | RS3-445MX-E3 | RS3-450MX-E3 | RS3-455MX-E3 | RS4-460MX-E3 |
| Maximum Power (Pmax) | 326.8W | 330.5W | 334.3W | 338.0W | 341.8W | 345.6W |
| Maximum Power Current (Imp) | 8.51A | 8.56A | 8.61A | 8.67A | 8.73A | 8.79A |
| Maximum Power Voltage (Vmp) | 38.40V | 38.60V | 38.81V | 38.97V | 39.15V | 39.32V |
| Short Circuit Current (Isc) | 9.25A | 9.31A | 9.38A | 9.44A | 9.51A | 9.58A |
| Open Circuit Voltage (Voc) | 45.66V | 45.85V | 46.04V | 46.22V | 46.41V | 46.59V |
