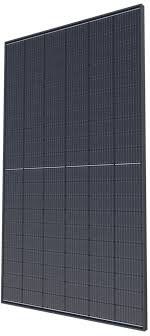

380W 400W 420W All Black PV Module Mono Half Cut Solar Cell

Name: 380W 400W 420W All Black PV Module Mono Half Cut Solar Cell
Brand: MITSCN
SKU: MITSCN
Rating: 4.7 (177 reviews)

Place of Origin	China
Brand Name	MITSCN
Certification	ISO

Product Details

Product Name:

Full Black Energy Solar Panel

Type:

All Black Monocrystalline Solar Panel

Power:

380W 400W 420W

Cell Size:

182mmx182mm

Application:

Solar Home System

Junction Box:

IP68 Rated

Frame:

Black Anodized Aluminium Alloy

Panel Dimensions:

1722*1134*30mm

High Light:

420W All Black PV Module

380W All Black PV Module

Mono Half Cut Solar Cell

Product Description

380W 400W 420W Mono Half Cell Full Black Energy Solar Panel

Cell size:182mmx182mm
Type:PERC, Half Cell, All Black
Panel Dimensions:1722*1134*30mm
Panel Efficiency:21.51%
Certificate:CE UL TUV
Warranty:25-years
Application:Solar Power System
Solar cell:A-grade
Frame:Black Anodized Aluminium Alloy
Keyword:All Black Monocrystalline Solar Panel
Color:Full Black
OEM Order:Customized Solar Panel Aavilable
Backsheet:Black PCB Board
Cell Type:Mono PERC Half Cell
Material:Mono-crystalline Silicon

380W 400W 420W Mono Half Cell Full Black Energy Solar Panel

Electrical Characteristics

Model Number	410M		415M		420M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	410	306	415	310	420	314
Open Circuit Voltage (Voc/V)	37.14	35.06	37.22	35.14	37.3	35.22
Short Circuit Current (Isc/A)	13.92	11.25	13.99	11.31	14.06	11.37
Voltage at Max Power (Vmp/V)	30.62	28.74	30.72	28.9	30.82	29.06
Current at Max Power (Imp/A)	13.39	10.65	13.51	10.73	13.63	10.81
Module Efficiency(%)	21		21.26		21.51
Temp Coefficient of Isc	+0.04%/°C
Temp Coefficient of Voc	-0.25%/°C
Temp Coefficient of Pmax	-0.34%/°C
