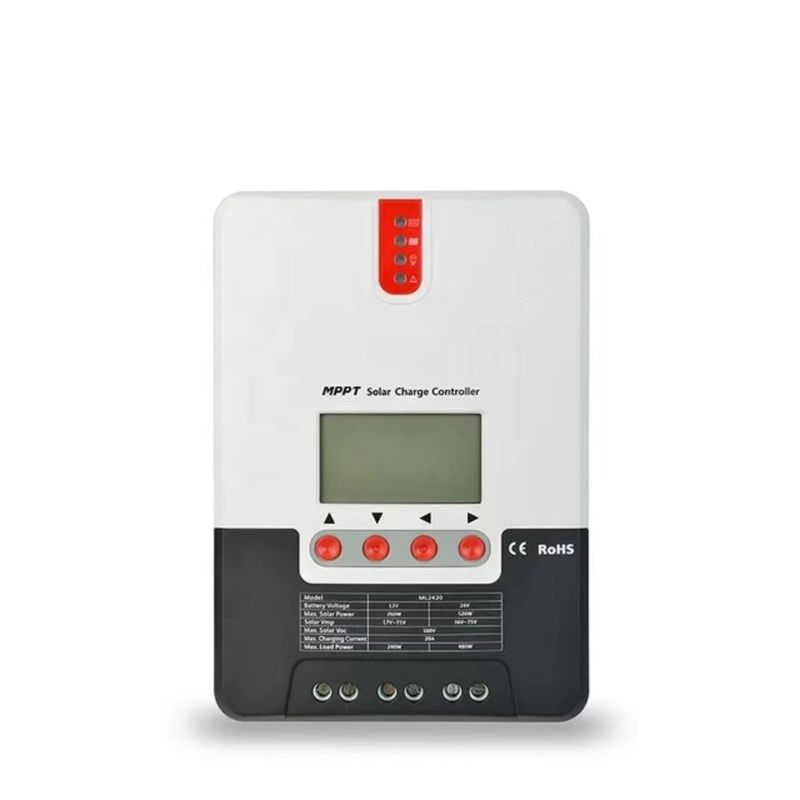

Solar PV Energy System
>
|
| Place of Origin | CHINA |
| Brand Name | MITSCN |
| Certification | CE |
| Model Number | ML4860 |
For off-grid application
Can be connected to both PV,battery and load
Multiple load operating modes to meet diverse needs
User-Friendly
Easy to instal and simple to use
Natural cooling, absolutely quiet
Safety
Complete charge and discharge protection mechanism
High quality components for stable operation
All-in-One
Supports muliple battery types
Highly intsg artsd, helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panel 2 in seriss/more in paralll
Intelligent
Supports RS232,RS485,(RV-C protocols)
Supports Bluetooth with mobile APP
| MODEL | ML4860N15 | Can Be Set |
| PV INPUT | ||
| Max Voltage of Open Circuit | 145Vdc | |
| MPPT Voltage Range | (Battery voltage+2V)～120V | |
| Max. PV Input Power | 800W/12V 1600W/24V 2400W/36V 3200W/48V |
yes |
| Num.of Parallel | 1-10 units | |
| BATTERY | ||
| Battery Type | Lead-acid /Li-ion /User Defined | yes |
| Rated Battery Voltage | 12/24/36/48Vdc | |
| Battery Voltage Range | 9~65Vdc | yes |
| Rated Charging Current | 60A | yes |
| MPPT Charging Mode | Buck | |
| LOAD | ||
| Load Type | Resistive load ,Capacitive load,Inductive load | |
| Rated Load Voltage | Equal to battery voltage 12/24/36/48V | |
| Rated Load Current | 20A | |
| Load Working Mode | Light control, Light control + Time control, Manual control (default), Debugging mode, Normal open |
yes |
| EFHCIENCY | ||
| MPPT Tracking Efficiency | >99% | |
| Max Charging Conversion Efficiency |
≤98% | |
| ACCESSORIES | ||
| Standard | BTS temperature sensor, 3 pole communication cable | |
| Optional | RM-5 display BT-1 Bluetooth module, USB to RS232 connection cable, GP-2 loT module, 6 pole communication cable |
yes |
| GENERAL | ||
| Gommunication | RS232/RS485 | yes |
| Weight | 3.6kg (7.94lb) | |
| Dimension | 285*205*93mm (0.94'0.67*0.31ft) | |
| Protection Degree | IP32 | |
| Operating Temperature Range | 35°℃~45°C(-31°F~113°F) | |
