Monocrystalline PV Module
>
|
| Place of Origin | China |
| Brand Name | MITSCN |
| Certification | ISO，CE |
| Model Number | RS6-525_550MX (182-144 black mono-facial modules) |

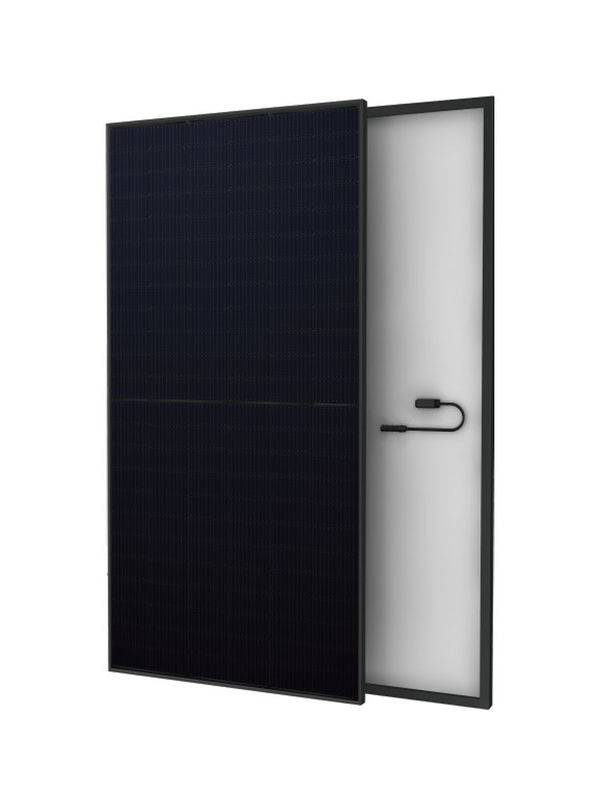

RS6-525_550MX (182-144 black mono-facial modules)
Product Description
Suitable for ground power plants and distributed projects Advanced module technology delivers superior module efficiency · Gallium-doped Wafer·Non destructive cutting ·MBB half-cut Excellent power generation performance · Excellent IAM and Weak light response ·Low temperature ratings · 0.55% linear Power decline High module quality ensures long-term reliability · Strict selected material ·Advanced technology ·Leading standard
Specification
| Electrical Characteristics STC | RS6-525MX-E3 | RS6-530MX-E3 | RS6-535MX-E3 | RS6-540MX-E3 | RS6-545MX-E3 | RS6-550MX-E3 |
| Maximum Power (Pmax) | 525W | 530W | 535W | 540W | 545W | 550W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Module Efficiency | 20.32% | 20.52% | 20.71% | 20.90% | 21.10% | 21.29% |
| Maximum Power Current (Imp) | 12.70A | 12.77A | 12.85A | 12.92A | 12.99A | 13.06A |
| Maximum Power Voltage (Vmp) | 41.35V | 41.50V | 41.65V | 41.80V | 41.95V | 42.10V |
| Short Circuit Current (Isc) | 13.55A | 13.64A | 13.73A | 13.81A | 13.90A | 13.99A |
| Open Circuit Voltage (Voc) | 49.20V | 49.35V | 49.50V | 49.65V | 49.80V | 49.95V |
| Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C) | ||||||
| Electerical Characteristics NOCT | RS6-525MX-E3 | RS6-530MX-E3 | RS6-535MX-E3 | RS6-540MX-E3 | RS6-545MX-E3 | RS6-550MX-E3 |
| Maximum Power (Pmax) | 392.2W | 395.9W | 399.6W | 403.4W | 407.1W | 410.9W |
| Maximum Power Current (Imp) | 10.21A | 10.27A | 10.33A | 10.39A | 10.45A | 10.50A |
| Maximum Power Voltage (Vmp) | 38.41V | 38.55V | 38.69V | 38.83V | 38.97V | 39.11V |
| Short Circuit Current (Isc) | 10.77A | 10.84A | 10.91A | 10.98A | 11.04A | 11.11A |
| Open Circuit Voltage (Voc) | 46.26V | 46.40V | 46.54V | 46.68V | 46.82V | 46.97V |
| Mechanical Characteristics | Characteristics | |||
| Cell Type | Monop-type, 182×182(±1)mm, 144(6×24)Half-Cut cells | Temperature Coefficient of Voc | -0.27%/°C | |
| Glass | 3.2mm ,High Transmission,Low lron,Tempered Glass | Temperature Coefficient of Isc | +0.048%/°C | |
| Frame | Anodized Aluminum Alloy | Temperature Coefficient of Pmax | -0.35%/°C | |
| Juction Box | IP68 Rated, With Bypass Diodes | Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |
| Dimension | 2278x1134x35mm | Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types. | ||
| Output Cable | 4 mm² (EU),300 mm,length can be customized | |||
| Weight | 27kg | |||
| lnstallation Hole Location | See Drawing Above | |||
