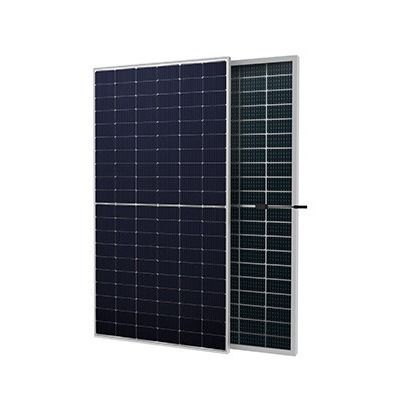

RS2-350_375MBG (166-120 bifacial module with dual glass)
Complete System and IEC Product Certification IEC 61215(2016),IEC 61730(2016) ISO9001: 2015:Quality Management System ISO14001: 2015:Environment Management System ISO45001:2018:Occupational Health and Safety Management System
| Electrical Characteristics STC | RS2-350MBG-E3 | RS2-355MBG-E3 | RS2-360MBG-E3 | RS2-365MBG-E3 | RS2-370MBG-E3 | RS2-375MBG-E3 | |||||||||||||||||||||
| Maximum Power (Pmax) | 350W | 355W | 360W | 365W | 370W | 375W | |||||||||||||||||||||
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | |||||||||||||||||||||
| Module Efficiency | 19.21% | 19.49% | 19.76% | 20.04% | 20.31% | 20.59% | |||||||||||||||||||||
| Maximum Power Current (Imp) | 10.58A | 10.64A | 10.70A | 10.76A | 10.82A | 10.89A | |||||||||||||||||||||
| Maximum Power Voltage (Vmp) | 33.00V | 33.30V | 33.60V | 33.90V | 34.20V | 34.40V | |||||||||||||||||||||
| Short Circuit Current (Isc) | 11.01A | 11.09A | 11.17A | 11.25A | 11.32A | 11.41A | |||||||||||||||||||||
| Open Circuit Voltage (Voc) | 40.50V | 40.70V | 40.90V | 41.10V | 41.30V | 41.50V | |||||||||||||||||||||
Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)
| Electerical Characteristics NOCT | RS2-350MBG-E3 | RS2-355MBG-E3 | RS2-360MBG-E3 | RS2-365MBG-E3 | RS2-370MBG-E3 | RS2-375MBG-E3 |
| Maximum Power (Pmax) | 263W | 267W | 271W | 275W | 279W | 283W |
| Maximum Power Current (Imp) | 8.48A | 8.54A | 8.60A | 8.65A | 8.71A | 8.77A |
| Maximum Power Voltage (Vmp) | 31.10V | 31.30V | 31.50V | 31.80V | 32.00V | 32.20V |
| Short Circuit Current (Isc) | 8.96A | 9.00A | 9.06A | 9.10A | 9.16A | 9.23A |
| Open Circuit Voltage (Voc) | 37.70V | 38.00V | 38.30V | 38.60V | 38.90V | 39.10V |
NOCT, lrradiance of 800W/m², AM1.5, Ambient Temperature 20 °C, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain |
RS2-350MBG-E3 | RS2-355MBG-E3 | RS2-360MBG-E3 | RS2-365MBG-E3 | RS2-370MBG-E3 | RS2-375MBG-E3 |
| Maximum Power (Pmax) | 423.5W | 429.6W | 435.6W | 441.7W | 447.7W | 453.8W |
| Maximum Power Current (Imp) | 12.83A | 12.90A | 12.96A | 13.03A | 13.09A | 13.19A |
| Maximum Power Voltage (Vmp) | 33.00V | 33.30V | 33.60V | 33.90V | 34.20V | 34.40V |
| Short Circuit Current (Isc) | 13.32A | 13.42A | 13.52A | 13.61A | 13.70A | 13.81A |
| Open Circuit Voltage (Voc) | 40.50V | 40.70V | 40.90V | 41.10V | 41.30V | 41.50V |
| Mechanical Characteristics | Characteristics | |||
| Cell Type | Monop-type,166×166(±1)mm,120(6×20)Half-Cut cells | Temperature Coefficient of Voc | -0.27%/°C | |
| Glass | 2mm+2mm ,High Transmission,Low lron,Tempered Glass | Temperature Coefficient of Isc | +0.048%/°C | |
| Frame | Anodized Aluminum Alloy | Temperature Coefficient of Pmax | -0.35%/°C | |
| Juction Box | IP68 Rated, With Bypass Diodes | Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |
| Dimension | 1755x1038x30mm | Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types. | ||
| Output Cable | 4 mm² (EU),300 mm,length can be customized | |||
| Weight | 23.2kg | |||
| lnstallation Hole Location | See Drawing Above | |||
| Packing Information | Maximum Ratings | |||
| Container | 40' HQ | Operating Temperature | -40°C~+85°C | |
| Pallets per Container | 26 | Maximum System Voltage | 1500VDC | |
| Pieces per Container | 936 | Maximum Series Fuse Rating | 20A | |
