| Place of Origin | China |
| Brand Name | MITSCN |
| Certification | ISO |

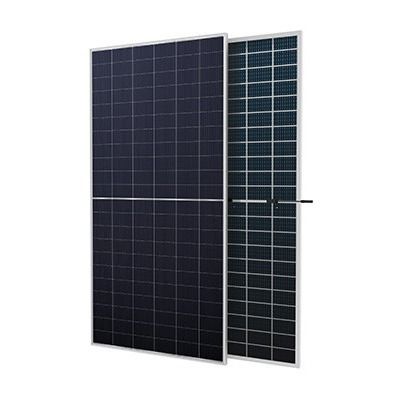

RS9-650_670MBG (210-132 bifacial module with dual glass)
Complete System and IEC Product Certification IEC 61215(2016),IEC 61730(2016) ISO9001: 2015:Quality Management System ISO14001: 2015:Environment Management System ISO45001:2018:Occupational Health and Safety Management System
· Suitable for ground power plants and distributed projects
· Advanced module technology delivers superior module efficiency
·Gallium-doped Wafer·Non destructive cutting ·MBB half-cut
· Excellent power generation performance
·Excellent IAM and Weak light response ·Low temperature ratings
·0.45% linear Power decline
· High module quality ensures long-term reliability
·Strict selected material ·Advanced technology ·Leading standard
· Ultra-hydrophilic self-cleaning coating techniques
| Electrical Characteristics STC | RS9-650MBG-E1 | RS9-655MBG-E1 | RS9-660MBG-E1 | RS9-665MBG-E1 | RS9-670MBG-E1 | ||||||
| Maximum Power (Pmax) | 650W | 655W | 660W | 665W | 670W | ||||||
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | ||||||
| Module Efficiency | 20.92% | 21.09% | 21.25% | 21.41% | 21.57% | ||||||
| Maximum Power Current (Imp) | 17.27A | 17.31A | 17.35A | 17.39A | 17.43A | ||||||
| Maximum Power Voltage (Vmp) | 37.70V | 37.90V | 38.10V | 38.30V | 38.50V | ||||||
| Short Circuit Current (Isc) | 18.35A | 18.40A | 18.45A | 18.50A | 18.55A | ||||||
| Open Circuit Voltage (Voc) | 45.50V | 45.70V | 45.90V | 46.10V | 46.30V | ||||||
Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)
| Electerical Characteristics NOCT | RS9-650MBG-E1 | RS9-655MBG-E1 | RS9-660MBG-E1 | RS9-665MBG-E1 | RS9-670MBG-E1 |
| Maximum Power (Pmax) | 492W | 495W | 499W | 504W | 509W |
| Maximum Power Current (Imp) | 14.01A | 14.05A | 14.10A | 14.16A | 14.23A |
| Maximum Power Voltage (Vmp) | 35.10V | 35.20V | 35.40V | 35.60V | 35.80V |
| Short Circuit Current (Isc) | 14.79A | 14.83A | 14.87A | 14.91A | 14.95A |
| Open Circuit Voltage (Voc) | 42.90V | 43.00V | 43.20V | 43.40V | 43.60V |
NOCT, lrradiance of 800W/m ², AM1.5, Ambient Temperature 20 °C, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain |
RS9-650MBG-E1 | RS9-655MBG-E1 | RS9-660MBG-E1 | RS9-665MBG-E1 | RS9-670MBG-E1 |
| Maximum Power (Pmax) | 786.5W | 792.6W | 798.6W | 804.7W | 810.7W |
| Maximum Power Current (Imp) | 20.90A | 20.95A | 20.99A | 21.04A | 21.09A |
| Maximum Power Voltage (Vmp) | 37.70V | 37.90V | 38.10V | 38.30V | 38.50V |
| Short Circuit Current (Isc) | 22.20A | 22.26A | 22.32A | 22.39A | 22.45A |
| Open Circuit Voltage (Voc) | 45.50V | 45.70V | 45.90V | 46.10V | 46.30V |
| Mechanical Characteristics | Characteristics | |||
| Cell Type | MonoP-type,210×210(±1)mm,132(6×22)Half-Cut cells | Temperature Coefficient of Voc | -0.27%/°C | |
| Glass | 2mm+2mm ,High Transmission,Low lron,Tempered Glass | Temperature Coefficient of Isc | +0.04%/°C | |
| Frame | Anodized Aluminum Alloy | Temperature Coefficient of Pmax | -0.35%/°C | |
| Juction Box | IP68 Rated, With Bypass Diodes | Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |
| Dimension | 2384x1303x35mm | Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types. | ||
| Output Cable | 4 mm² (EU),300 mm,length can be customized | |||
| Weight | 38.7kg | |||
| lnstallation Hole Location | See Drawing Above | |||
| Packing Information | Maximum Ratings | |||
| Container | 40' HQ | Operating Temperature | -40°C~+85°C | |
| Pallets per Container | 18 | Maximum System Voltage | 1500VDC | |
| Pieces per Container | 558 | Maximum Series Fuse Rating | 35A | |
