HBP1800 MPPT Energy Storage Solar System All-In-One 2KW 3KW 60Hz
Product Summary
HBP1800 series HBP1800 series all-in-one energy storage solution, support 1KW 2KW 3KW output for diferent load appliances. It's based on the original cabinet design, stacked with solar energy storage lithium battery 960wh~3072wh, and built in battery protection system, fully retain the use of load ...
Product Custom Attributes
Highlight:
MPPT Energy Storage Solar System
,3KW Solar Energy Storage System
,60Hz Solar Energy Storage System
Basic Properties
Place of Origin:
China
Brand Name:
Purple Horn
Certification:
ISO
Trading Properties
Minimum Order Quantity:
Negotiatble
Packaging Details:
carton,pallet,full container
Delivery Time:
30days
Payment Terms:
L/C, D/A, T/T, D/P
Product Description

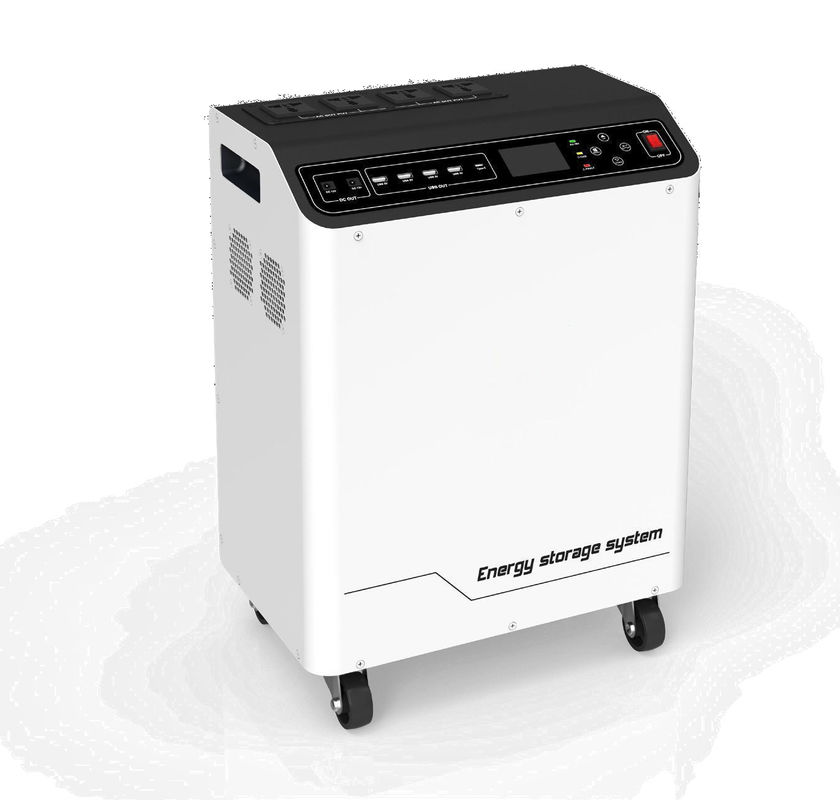

HBP1800 series
HBP1800 series all-in-one energy storage solution, support 1KW 2KW 3KW output for diferent load appliances. It's based on the original cabinet
design, stacked with solar energy storage lithium battery 960wh~3072wh, and built in battery protection system, fully retain the use of load power in
applications of residential, school, commercial and public utility area.
1000W / 2000W / 3000W Pure sine wave inverter
960wh~3072wh Optional Energy storage
4000+ charge cycle
24/7 UPS Plug & play use
11 Output ports for DC load
Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable ofcharging larger USB devices like laptops.
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40%faster charge times.
With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system that prevents over-charge, over-current, and short circuiting.
Built in Multi safety protection that include short circuit, overload and over-temperture and error code reporting.
Specification
| MODEL | HBP18-1012 | HBP18-2024 | HBP18-3024 | ||||||
| Inverter | Rated power | 1000W | 2000W | 3000W | |||||
| Output voltage waveform | Pure sine wave | ||||||||
| Output voltage regulation | 230Vac±5% | ||||||||
| Output frequency | 50Hz/60Hz(±0.2Hz | ||||||||
| Peak efficiency | 90% | ||||||||
| Nominal DC input voltage | 12Vdc(±0.3) | 24Vdc(±0.3) | 24Vdc(±0.3) | ||||||
| Standby Consumption | <25W | ||||||||
| PV Input |
Max solar power input | 900W | 1800W | 1800W | |||||
| PV max charging current | 60A(±3A) | 60A(±3A) | 60A(±3A) | ||||||
| Combined charging current | 70A(±4A) | 80A(±4A) | 80A(±4A) | ||||||
| Max efficiency | 98.0% max | ||||||||
| PV array open circuit voltage | 105VDC | 145VDC | 145VDC | ||||||
| PV Array MPPT Voltage Range | 15~105V | 30~120VDC | 30~120VDC | ||||||
| AC Input |
AC input voltage | 230Vac ±5% | |||||||
| Acceptable input voltage range | 90-280VAC | ||||||||
| Nominal input frequency | 50Hz/60Hz(Auto detection) | ||||||||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | ||||||||
| AC Charge |
Charging current @ Nominal input voltage |
10/20A(±4A) | 20A/30A(±4A) | 20A/30A(±4A) | |||||
| Charging Algorithm | 4-step (Li) | ||||||||
| Output | AC output | 230Vac (Socket*4pcs | |||||||
| Type-C | DC output*1pcs | ||||||||
| USB (5V 2.4A) | DC output*4pcs | ||||||||
| USB(12V 1A) | DC output*2pcs | ||||||||
| Lithium Battery |
Energy | 960Wh | 1280Wh | 1920Wh | 2560Wh | 2560Wh | 3072Wh | 6400Wh | |
| Nominal voltage | 12.8V | 25.6V | 25.6V | ||||||
| Battery capacity | 75Ah | 100Ah | 75Ah | 100Ah | 100Ah | 120Ah | 250Ah | ||
| Protection board | 100A | 100A | 140A | ||||||
| Standard charging & discharge current | 50A | 50A | 50A | 50A | 50A | 50A | 50A | ||
| Operation temperature |
Charge | 0~45℃ | |||||||
| Discharge | -10~60℃ | ||||||||
| Dimension | Product Size (LxWxH)(mm) | 359*234*499 | / | / | / | ||||
| Packing Size (LxWxH)(mm) | / | / | / | / | |||||
| Net Weight (kg) | / | / | / | / | / | / | / | ||
| Gross Weight(kg) | / | / | / | / | / | / | / | ||
